Warrior 2100

Name: Warrior 2100
Brand: Powerscreen
Availability: InStock

PRODUCT TYPE: Scalper Screener

VENDOR: Powerscreen

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

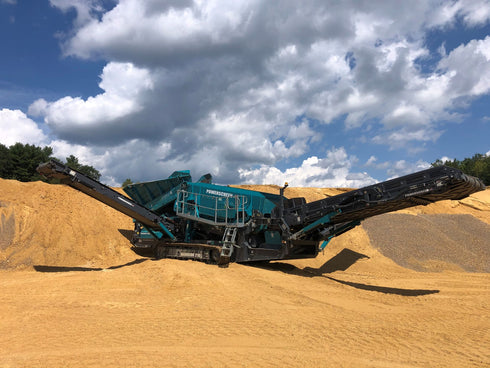

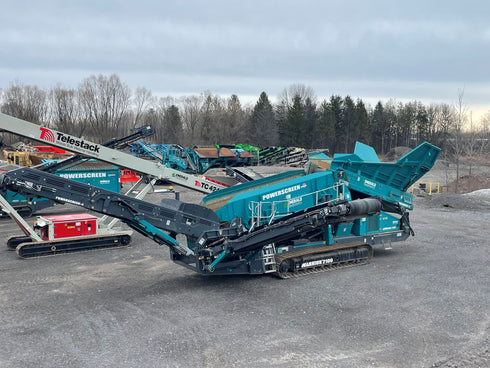

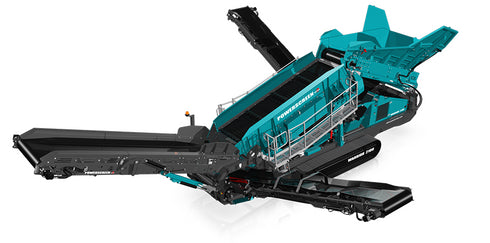

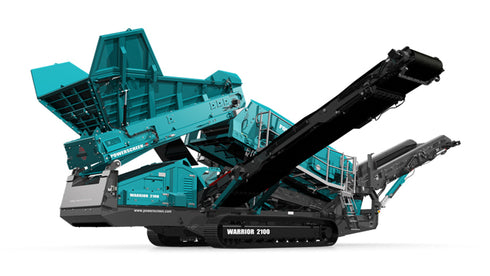

The Warrior 2100 is engineered to include the proven Triple Shaft technology which is unique to Powerscreen heavy duty mobile screens. The triple shaft design ensures that the 16′ x 5′ screen box is highly efficient while maintaining exceptional throughput productivity. The extreme screening acceleration offers the Warrior 2100 improved capabilities over its class rivals, especially in sticky scalping applications. Whilst the Warrior 2100 sits within the same transport envelope as other machines in the 16′ x 5′ class, it has been proven to considerably outperform any conventional single shaft 16′ x 5′ screen.

It is designed with economy in mind, with reduced fuel consumption being achieved through a lower engine running speed of 1800rpm and enhanced hydraulics. Optional on-board Envirotrak systems provide further energy saving technologies like Dual Power and Fuel-Save mode. A variety of media solutions mean that the Warrior 2100 is extremely efficient in scalping, screening and recycling applications and it can process mixed demolition waste including grass, soil, concrete, wood and asphalt

Features & Benefits

Output potential up to 700 tph (772 US tph)
Heavy duty, 2 deck screen box featuring Triple Shaft technology with adjustable screen timing, amplitude and frequency
Hydraulic folding conveyors with excellent stockpiling capacity
Side conveyors can be switched
Rigid one piece hopper for optimum material flow
Rigid one piece hopper
Two speed tracksli>
Low engine running speed to improve fuel consumption
Jack up screen facility to aid mesh changes
Collection conveyor raise feature for enhanced serviceability
Screen walkway and access ladder
Engine protection shut down system

Options

Chassis riser (8”)
Telescopic side conveyors
Hydraulically folding hopper extensions
High capacity incline apron feeder
2 or 3 way split configuration
Dual power (additional electric hydraulic drive)
Auto lubrication system
Radio controlled tracking
Wide range of screen media
Quick release screen wedge tensioning
Dust suppression

Specification Table

	Warrior 2100 3 Way Split
Weight	34,800kgs (76,720lbs)
Transport width	3.0m (9'10")
Transport length	16.02m (52'7")
Transport height	3.4m (11'2")
Working width	13.6m (44'7")
Working length	16.3m (53'5")
Working height	4.5m (14'9")
Screenunit	4.88m x 1.5m (16'x5')
Screenunit is a triple shaft screenbox
