Chieftain 1700 & 1700S 3 Deck

Name: Chieftain 1700 & 1700S 3 Deck
Brand: Powerscreen
Availability: InStock

PRODUCT TYPE: Screener

VENDOR: Powerscreen

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

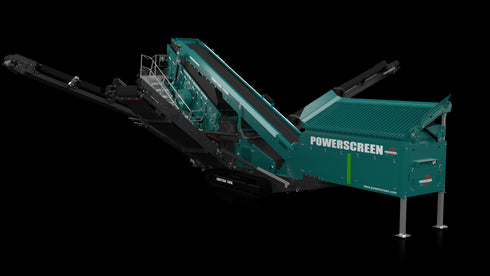

The Powerscreen® Chieftain 1700 / 1700S is a mid-sized track mobile screen aimed at end users requiring high volumes of finished products in applications including topsoil, coal, crushed stone, recycling, iron ore, sand and gravel. p>
User benefits include hydraulic folding conveyors for a quick set-up time, screen walkways and access ladders for ease of maintenance, and a drop down tail conveyor to aid screen media changes.

Features & Benefits

Output potential up to 500 tph (541 US tph)
Radio controlled tipping grid
Integrated high capacity variable speed belt feeder
Grease filled 2 bearing screen box
Heavy duty single shaft screenboxes with adjustable stroke, angle & speed
Hydraulic screen tensioning
Screen walkway and access ladder
Hydraulic folding conveyors with excellent stockpiling capacity
Patented fully mounted hydraulic folding auxiliary conveyor ( 3 deck)
Engine protection shutdown system

Options

Wheel or track mobile
Double deck vibrating grizzly
Radio controlled tracks
Dual Power
Roll-in bogie prepared
Roll-in bogie equipped
Quick release screen wedge tensioning
Anti roll-back
Auto lubrication system

Specification Table

	Track	Wheel
Weight	28,000kgs (65,698lbs)	27,500kgs (60,627lbs)
Transport width	3.0m (9'10")	3.0m (9'10")
Transport length	16.53m (54'3")	16.81m (55'2")
Transport height	3.5m (11'6")	3.88m (12'9")
Working width	17.32m (56'10")	17.32m (56'10")
Working length	17.22m (56'6")	17.22m (56'6")
Working height	5.89m (19'4")	6.19m (20'4")
Screenunit	4.81m x 1.5m (16' x 5')	4.81m x 1.5m (16' x 5')
