Warrior 600

Name: Warrior 600
Brand: Powerscreen
Availability: InStock

PRODUCT TYPE: Scalper Screener

VENDOR: Powerscreen

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

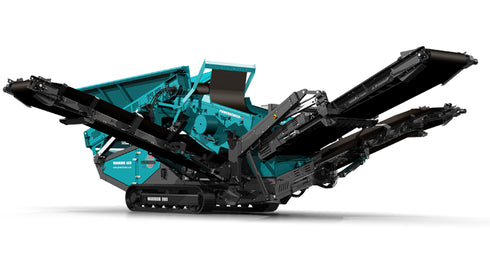

The Powerscreen® Warrior 600 has been specifically designed for operators for whom versatility, maneuverability and transportability are of key importance. The compact transport envelope allows the unit to be transported in a shipping container, and is small and light enough to move between sites with minimal cost. The machine is a multipurpose heavy duty incline 2 deck screen, capable of stockpiling, scalping before and after crushing units, or as a standalone unit. Its highly aggressive screen can accept bofor bars, finger screens, woven mesh and punch plates along with other application specific media types.

User benefits include a rapid set-up time and ease of operation aided by hydraulic folding side conveyors, rigid feed hopper sides and two speed tracks.

Features & Benefits

Output potential up to 280 tph (308 US tph)
Rapid conversion from 3 way split to 2 way split - fully hydraulic
High aggression screenbox with ability to adjust stroke
Robust, heavy duty, fixed angle 2 bearing, 2 deck screen)
Variable speed hopper featuring heavy duty rollers & rigid hopper
Open chassis design with unrivalled access below screen to aid mesh changes
Hydraulic folding conveyors with excellent stockpiling capacity

Options

Radio controlled tracking
Screen blanket
Auto lubrication system
Dust suppression
Plain/chevron belt conveyors
Wide range of screen meda
Quick release screen wedge tensioning

Specification Table

	Track
Total weight	12,00kgs (26,455lbs)
Transport width	2.25m (7'5")
Transport length	10.98m (36')
Transport height	2.55m (8'4")
Working length	10.54m (34'7")
Working width	10.42m (34'2")
Working height	3.18m (10'5")
Screen unit	2.34m x 1.17m (8'x4')
