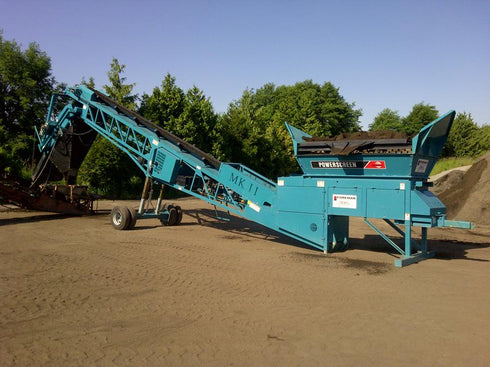

Powerscreen MKII

PRODUCT TYPE: Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

The Powerscreen® MK II is a time proven entry level mobile screening unit that is portable, easy to setup and maintain. Ideal for smaller end users who require a affordable flexible product suitable for applications such as topsoil, coal, crushed stone, recycling, sand and gravel.

    Features & Benefits
    • Output potential up to 150 tph (168 US tph)
    • Wheel mobile
    • Feed hopper with manual reject grid
    • Variable speed control belt feeder
    • Fully enclosed power unit
    • Screenbox (2-deck, 4 bearing,
    • 1.2m x 2.4m (8' x 4') end tensioned)
    • Hydraulic jacking legs
    Options
    • Remote control tipping bofor steel
    • Hopper extensions
    • Ground level towing eye
    • Anti roll-back
    • Electric hydraulic
    • Electric control panel
    • Hydraulic screen angle adjustment
    • Screen walkway and access ladder
    Specification Table
    Weight (Est) 8,900kgs (19,620lbs)
    Transport width 2.5m (8'2")
    Transport length 16.6m (54'6")
    Transport height 4m (13'2")
    Working width 2.5m (8'3")
    Working length 20.66m (68'4")
    Working height 5.9m (19'7")
    Screenunit 2.4m x 1.2m (8' x 4')



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
