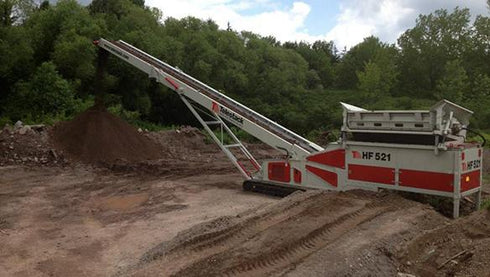

HF521 Hopper Feeder

PRODUCT TYPE: Hopper Feeder Conveyor

VENDOR: Telestack

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

The Telestack Range of Mobile Hopper Feeders and Mobile Low Feeders are designed to be loaded directly from wheel loaders, grab cranes, excavators etc. The mobile range can be used to stockpile material, feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc at production rates of up to 2500TPH





    Features
    • Output Potential: up to 550 US tph
    • 48” wide feeder belt
    • 14’ 9yd3 hopper capacity
    • 42” x 70’ belt
    • CAT C4.4 100hp water cooled engine
    • Hydraulic raise / lower incline conveyor
    • Heavy duty mid section for large lump size
    • Heavy duty folded plate section
    • Hydraulic folding head section
    • Heavy duty 13’ x 16” shoe tracks
    Options
    • Dual power ( electric motor driven)
    • Hopper with bolt-in liners
    • 12 / 16yd3 hopper capacity
    • Up to 10” feed material
    • Dust covers / Supression
    • Belt weighers
    • Feedboot extensions
    • Feedboot extensions
    • Anti roll back measures
    Specification Table
    HF 521
    Weight (Est) 43,440lbs
    Transport width 8' 10”
    Transport length (head folded) 58’9”
    Transport height (head folded) 9’9”
    Discharge height 27’10”
    Stockpile capacity 1,508yd3 / 2,033t

    * All information subject to machine configurations & specifications ordered.

    ** Telestack reserves the right to change specifications without prior notice.
