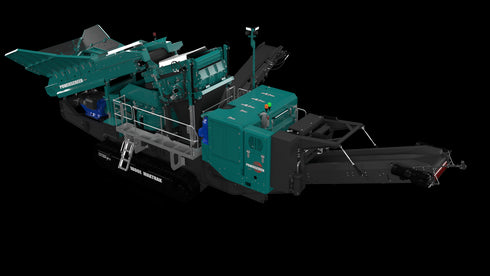

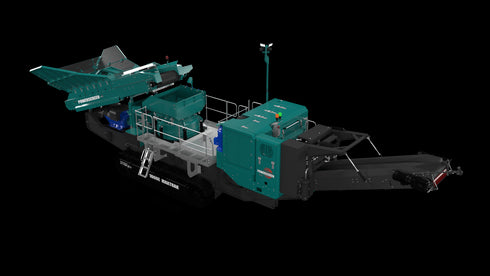

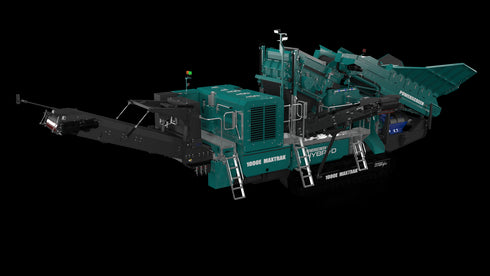

Powerscreen 1000E Maxtrak Cone Crusher

PRODUCT TYPE: Cone Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

The high performance Powerscreen 1000E Maxtrak Cone Crusher offers operators the flexibility to power the plant either by mains electricity or an on-board genset power-pack. Either power option presents the operator with significant power along with service and maintenance cost savings. This energy efficient and productive machine incorporates the proven 1000 Automax Cone Crusher with direct electric drive, automatic tramp relief, and hydraulic closed side setting (CSS) adjustment.

    Features & Benefits
    •  Cone feed box level control to maintain choke feeding
    • Hydraulic crusher setting
    • Cone overload protection
    • Heavy duty chassis & track frame
    • Metal detector and purge system
    • Dust suppression system
    • Heavy duty fabricated chassis & track frame
    • Remote control via umbilical
    • Radio remote control as standard
    • Powerscreen Pulse telemetry as standard
    Options
    • Feed hopper extension plates
    • Feed hopper level sensor
    • Concave: Extra coarse, medium coarse, fine
    • Short throw eccentric
    • Camera over crusher
    • Product conveyor belt weigher / stockpile sensor
    • Product conveyor dust covers
    • Hot / Cold weather oil / coolers
    • Electric re-fueling pump
    • Hydraulic water pump
    • Urea re-fueling pump
    • Control panel positive air pressurization
    • Radio remote control
    Specification Table
    1000E Maxtrak
    Weight 45,320kgs (99,914lbs) with p/screen
    Transport width 3.0m (9'10")
    Transport length 16.9m (55'5")
    Transport height 3.5m (11'6")
    Working width 6.55m (21'6")
    Working length 15.79m (51'10")
    Working height 6.0m (19'8")



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
