Emerald Diesel Conveyors

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

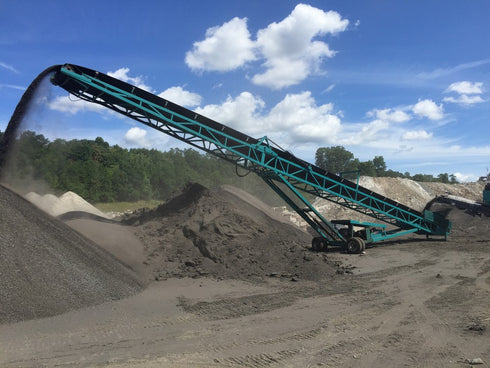

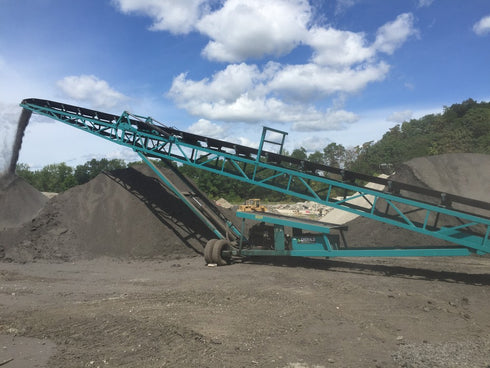

Emerald Range of mobile conveyors are offered in both electric and diesel versions as standard.  Typical stock machines range from 65' - 120' with custom versions up to 200'.  Suitable for a variety of applications such as much, sand & gravel and quarry materials.  Large target area feedboot enables the conveyor to be placed directly after a crusher or screener
    Features
    • 36” wide 3 ply vulcanized
    • Feedboot with liners
    • Manual lift
    • Radial single axle dual wheels
    • Heavy duty Lattice frame
    • Manual top & front fold
    • Electric wrap drive
    • Head & tail drum scrapers
    • Remote greasing
    Options
    • Walkways
    • Dust covers / Suppression
    • Belt weighers
    • Feedboot extensions
    • Magnetic head drum
    • Anti roll back measures
    • Hydraulic raise / lower / radial
    • Other custom options available
    • Diesel drive
    Specification Table

    PC6536 PC8036 PC10036
    Belt length 65' 80' 100'
    Belt Width
    36" 36" 36" 3
    Towing width
    8' 10"
    Transport length (head folded)
    74' 8"
    Transport height (head folded, tow)
    12’10”
    Discharge height
    32' 31'
    Stockpile capacity
    18503yd3

    * All information subject to machine configurations & specifications ordered.

    ** Emerald reserves the right to change specifications without prior notice.
