PRODUCT TYPE: Track Conveyor
CLICK HERE to download brochure

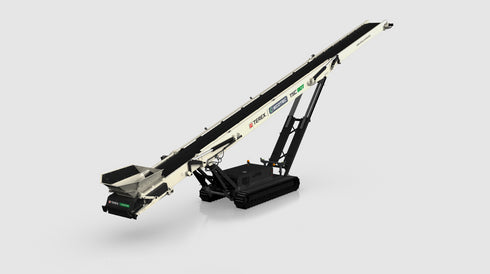

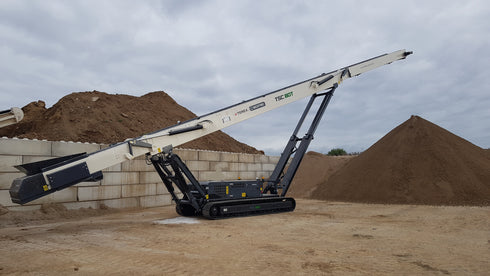

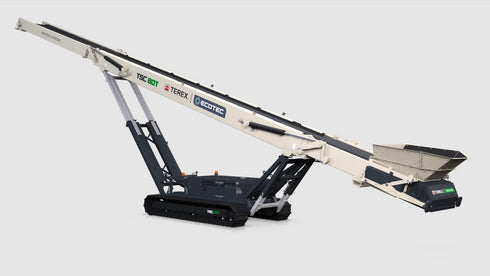

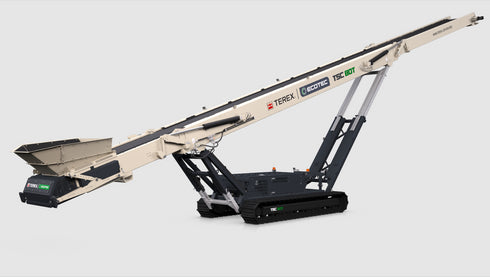

Ecotec's TSC 80T is a self-powered 80ft Tracked Conveyor with impressive features and conveying capacities. The intelligent design allows the machine to be folded small enough to fit inside a 40ft container and be shipped cost effectively globally.
The track in and out design lets operators simply track the machine out and fold into working position and start conveying material. Hydraulic angle adjustment and belt speed adjustment ensure optimum performance in every application. A maximum discharge height of 10.5m (34’ 6”) and capacities of up to 400tph position the TSC 80T as a leader in the industry.
Features & Benefits
- Folding head section
- Compact folding mechanism allows containerised shipping as one unit.
- Pinless deployment
- Hydraulic adjustment for variable feed height reduces impact and provides optimal material transfer.
- Hydraulic angle adjustment for easy plant integration.
-
Tier 3: Deutz DT011 36kW (45hp)
Tier 4F: Deutz TD2.9 45kW (60hp)
Stage V: Deutz TC 2.9 L4 45kW (60hp)
Fuel tank volume 200L (58 US GAL)
- Dual-speed tracks for quick and controlled deployment.
- Steel lined feedboot as standard providing extended wear life. Feedboot extensions and rubber lined options also available.
- Folding tail section
Specification Table
Conveyor Length
|
74'10" / 22,800mm
|
Belt Width
|
42" / 1,050mm
|
Max Discharge Height
|
34'2" / 10.41m
|
* All information subject to machine configurations & specifications ordered.
** ECOTEC reserves the right to change specifications without prior notice.
