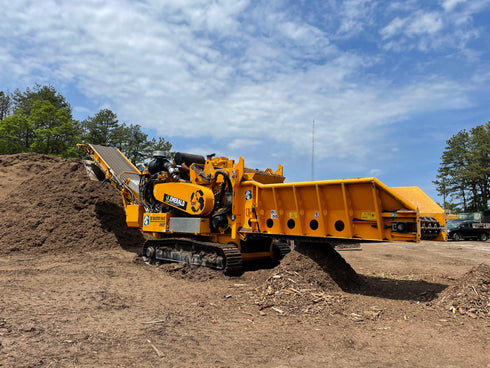

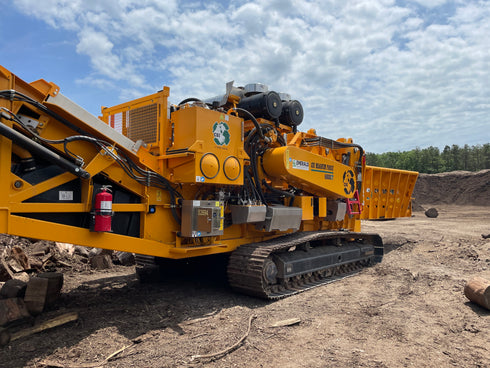

CBI 5800T Upswing Grinder

PRODUCT TYPE: Horizontal Grinder

VENDOR: CBI

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION
CBI 5800B delivers uncompromised production, efficiency, durability, quality, and ease of maintenance. The best grinder on the market just got better. Among its no- table features are the unique clamshell opening for ease of maintenance, hydrostatic feed system and diverter pan. This grinder is engineered to give land clearing companies, mulch yards, and yard waste and demolition wood processors what they need for high-volume throughput and maximum reliability
    Features & Benefits
    • Quick set up time typically under 15 minutes
    • High capacity
    • Upswing grinder
    • Forged 40” x 48” rotor with offset-helix hammer pattern
    • Replaceable tips
    • Split hog box for ease of maintenance and screen change
    • Bolt in replaceable hardox liners in hog box
    • 48” wide discharge belt
    • High ground clearance
    • 60” x 60” shuttle conveyor to divert screened out material
    • Upper roll with internal drive
    • Remote adjust crush force
    • Hydrostatic closed loop hydraulic system
    • 2 speed track motors
    • Automatic reversing pitch radiator fan
    • CAT C18 765hp with PT Tech clutch
    Specification Table
    Weight 69,000lbs
    Transport length 38’11”
    Transport width 8’4”
    Transport height 12’
    Discharge height 15’10”

    FULL SPECIFICATION BROCHURE

    * All information subject to machine configurations & specifications ordered.

    ** Terex Ecotec reserves the right to change specifications without prior notice.
