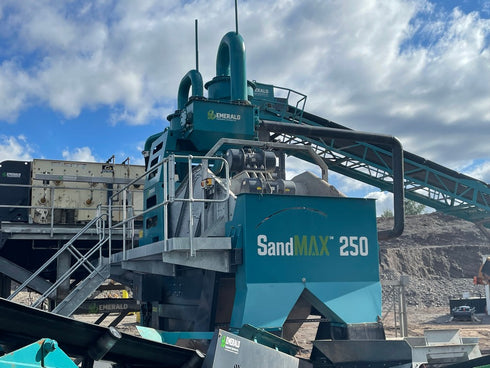

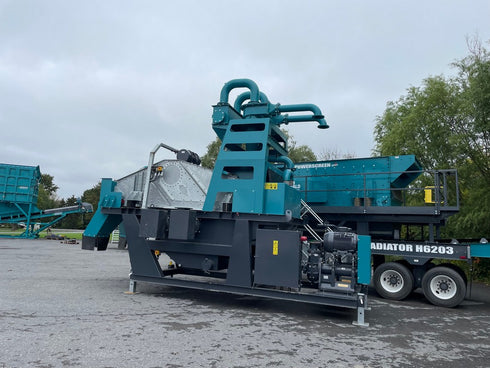

Emerald Sandplant range are modular sand washing and classification units which are energy and cost efficient on a single modular chassis. The sandplants utilize centrifugal force within the cyclones to remove silts, clay and slimes from the sand slurry to produce a clean specification.
Modular design enables fast setup time onsite with minimal footprint. Precise classification within the cyclones allows maximum recovery of all saleable material reducing pond maintenance and cleanout costs
Specification
- Linatex rubber lined slurry pump
- Linatex rubber lined cyclones
- Self regulating cyclone tank
- High frequency Galvanized dewatering screen fitted with polyurethane modular mats
- Maximum recovery of material above 200 mesh
- Low moisture final product
- Blending capability to enhance sand specification
- Market ready spec sand
- Can accept a dry or wet feed slurry
- Gravity fed from ScreenMAX to reduce installation costs
- Dirty water can be gravity fed to a WaterMAX water management system without inground sumps / pumps
- Setup to accept and produce 1 or 2 grades of spec sand
- Can be configured to PreWash Sand & produce spec sand product*
Options
- Control panel with additional starters and remote diagnostics
- Separator Cyclones
- Ultra fines cyclones to cut material at 400mesh
- Plant can be configured to PreWash material
| Feed in height |
8' |
| Screenbox size |
12' |
| Working length |
24' |
| Working width |
12' |
| Working height |
18' |
