CT100 Track Conveyor

Name: CT100 Track Conveyor
Brand: Powerscreen
Availability: InStock

PRODUCT TYPE: Conveyor

VENDOR: Powerscreen

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

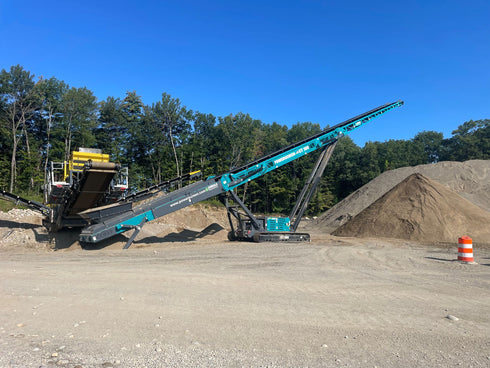

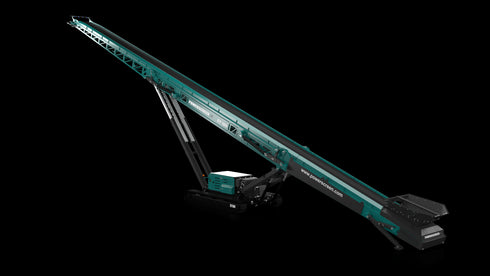

The Powerscreen CT100 100ft stacker, builds on the hugely successful Powerscreen CT65 & CT80 conveyors with extra length and capacity. The extra length of conveyor, and increased power, allows for maximum mobility and flexibility, reducing or eliminating the use of wheeled loaders on site. The conveyor can cope with all applications, from light duty screened material, through to jaw applications. Although the conveyor is 100ft long, it still retains the ability to be transported worldwide in a 40ft container meaning convenience and keeping shipping costs low. The Powerscreen® range of mobile conveyors are designed to work in conjunction with the entire range of Powerscreen crushing and screening equipment. Using conveyors or stackers means increased stockpile capacity and reduces on-site material handling.

Features

Self powered diesel hydraulic tracked conveyor
Steel lined feedboot as standard providing extended wear life.
Full hydraulic set-up, no crane required
Containerised, track in/track out
Hydraulic adjustment for variable feed height reduces impact and provides optimal material transfer
Dual speed tracks for quick and controlled deployment
Fully protected power unit with easy access for service and maintenance

Options

Rubber feedboot liners
Feedboot extensions
Impact bed at feedboot
Impact rollers at feedboot
High spec discharge conveyor head drum scraper
Chevron belt
High spec discharge conveyor head drum scraper
Head drum guards
Under guards
Dust covers
Dust suppression water spray at head drum
Conveyor drive - direct electric
Full length skirting
Pull cord emergency stop along length of conveyor

Specification Table


	CT100
Belt length	98'
5"Belt Width	41"
Transport width	9' 2"
Transport length (head folded)	39'
Transport height (head folded, tow)	11' 3"
Discharge height	43'
Max angle	25deg
