Powerscreen 1150 Maxtrak Cone Crusher

Name: Powerscreen 1150 Maxtrak Cone Crusher
Brand: Powerscreen
Availability: InStock

PRODUCT TYPE: Cone Crusher

VENDOR: Powerscreen

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

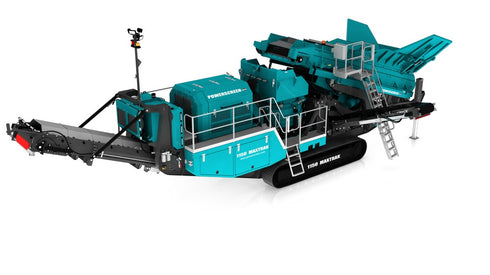

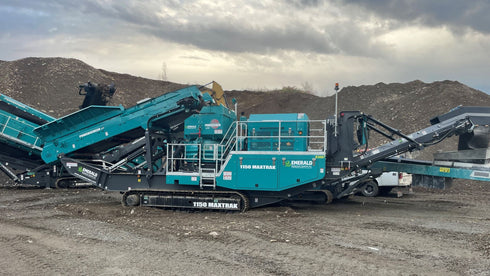

The Powerscreen 1150 Maxtrak is a high performance, medium sized track mobile cone crusher. At the heart of the Maxtrak is the Automax cone crusher with hydraulic setting, tramp release, and unblocking system. Its unique crushing action provides excellent capacity, high reduction, and good product cubicity for the production of high-quality aggregate and sub-base materials. A level probe over the feed ring regulates the feed belt to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life, and optimal product shape.

Features & Benefits

Output Potential: up to 300 tph (330 US tph)
Renowned Automax^® crusher technology
Accepts all in clean feed
Excellent product shape
High reduction ratio
Hydraulic crusher setting
Cone overload protection
Heavy duty chassis and track frame
Metal detector
Cone feed box level control to maintain choke feeding
Dust suppression system
Economical to operate with a highly fuel efficient direct drive system
Fitted with Powerscreen Pulse Telematics system

Options

Feed hopper extension plates
Feed hopper level sensor
Concave: Extra coarse, medium coarse, fine
Short throw eccentric
Camera over crusher
Product conveyor belt weigher / stockpile sensor
Product conveyor dust covers
Hot / Cold weather oil / coolers
Electric re-fueling pump
Hydraulic water pump
Urea re-fueling pump
Radio remote control

Specification Table

	1150 Maxtrak
Weight	42,900kgs (94,578lbs)
Transport width	3m (9'10")
Transport length	16.9m (55'5")
Transport height	3.6m (11'10")
Working width	4.5m (14'9")
Working length	16.4m (53'10")
Working height	5.6m (18'4")
